Solid Sodium Silicate Production Line

Home  > Solid Sodium Silicate Production Line  >

Dry Process Solid Sodium Silicate Plant with Hot Air Furnace

这里可以自定义设置
Dry Process Solid Sodium Silicate Plant with Hot Air Furnace
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Fluid Bed Drying Equipment Type
Horizontal Fluid Bed
Vacuum Drying Equipment Type
Continuous Vacuum
Condition
New
Product Name
Solid Sodium Silicate Plant with Furnace
Heating Method
Horseshoe Flame Furnace
Raw Material
Quartz Sand, Soda Ash
Installation
Engineer Guide
Feature
Energy Saving
Cooling Method
Air Cooling, Water Cooling
Finally Products
Sodium Silicate, Water Glass
Trademark
Meibao
Transport Package
Standard Expot Packing
Specification
Standard
Origin
China

Dry Process Solid Sodium Silicate Plant with Hot Air Furnace

 Products description

The main raw materials of dry process sodium silicate production are soda ash and quartz sand. The process is batching, firing and dissolving.

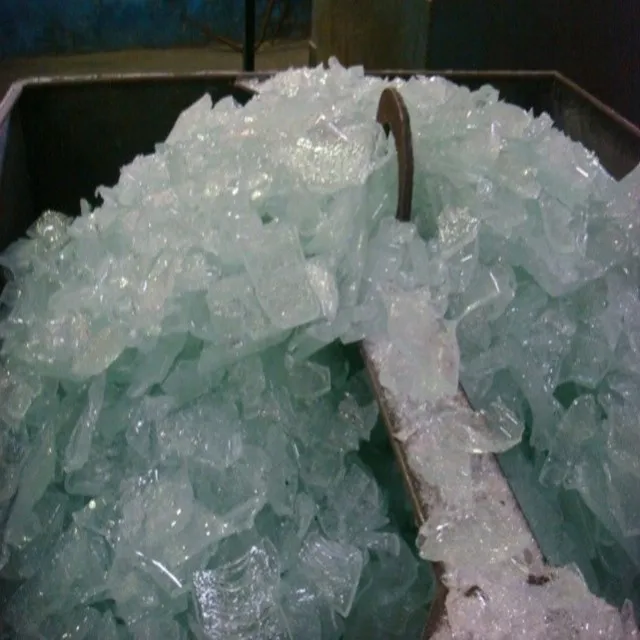

The quartz sand and soda ash are weighed in proportion according to the formula, and are automatically put into the furnace through the conveying device. Chemical reaction occurs at a high temperature of 1350-1450 ºC after the material is put into the furnace. The molten sodium silicate through air cooling or water cooling to form a glassy solid particle sodium silicate. Finished products are sent to the warehouse or stacked or cooled to room temperature for sale. The reflector adopts regenerative preheater. The 1200 ºCflue gas from tail can make air and gas preheat to 1100 ºC and 900 ºC respectively. Exhaust temperature dropped to below 180 ºC to achieve energy conservation and cost reduction.

Technology characteristics

Product NameIndustrial Turnkey Project Solid Sodium Silicate Plant with Furnace
Capacity10-200 tons/day
Raw materialsQuartz sand, soda ash
InstallationEngineer Guide
Cooling methodAir cooling, water cooling
Warranty1 year
Final productsSodium silicate, water glass

Dry Process Solid Sodium Silicate Plant with Hot Air Furnace
Dry Process Solid Sodium Silicate Plant with Hot Air Furnace

Our Comapny
Dry Process Solid Sodium Silicate Plant with Hot Air Furnace
Rated Products

Dry Process Solid Sodium Silicate Plant with Hot Air Furnace
Our customers

Dry Process Solid Sodium Silicate Plant with Hot Air Furnace
Dry Process Solid Sodium Silicate Plant with Hot Air Furnace
Shipping
Dry Process Solid Sodium Silicate Plant with Hot Air Furnace

Contact

For more information, please contact us:

       Contact Person:  Zoe Song

       Zhejiang Meibao Industrial Technology CO.,Ltd.

      Office: Floor 14(151)th,Wuchan Guoji Plaza,Kaixuan Road,Hangzhou ,China

      Factory: No.150 Xinan Town,Deqing ,Zhejiang,China



All detergent powder production line products have achieved national certification of the safety standard certificate. The product ensures high operation efficiency and accuracy. Efficient delivery can be guaranteed in Meibao to ensure the business timely developed. The product ensures high operation efficiency and accuracy.
