Stone Cleaner

Stone Cleaner

Brand: Meibao

Heating Method: Hot air furnace

Warranty: 1 Year

MOQ: 1 Ton/hour

FOB Port: Shanghai/Ningbo

Certification: ISO9001

Package: Export standard package

Service: Design, manufacture, installation, commission, training

Payment Term: T/T, L/C at sight, Performance Guarantee

Add success, do you want to check your shopping cart?


Product Information

Providing equipment and technical services to about 1700 companies around the world


Type/SpecificationST-CL-3Operating speed(Km/h)≤4
Supporting power(KW)≥92Stone clearance rate(%)≥90
Maximum excavation depth(cm)25-30Working efficiency(㎡/h)≥3000
Working pressure of hydraulic system(Mpa)≤15Size of the picked up stones(cm)3*3*3-25*25*25
Working breadth(cm)160Machine weight (kg)3010
Rotation rate of output axis(r/min)640-1000 Maximum outline dimension(mm)5100*2950*2500

Technology Characteristics

Waste gas: Combustion exhaust air emission, normally use clean fuel, main components is CO2.

Waste water: water fully used, no water water emission.

Waste slag: no slag.

Product description:

The stones in the farmland have a great influence on the farmland's farming income, and also have great damage to mechanized sowing and receiving equipment.

In order to solve the problem about difficult to clean the stones in the land, and control the cost of cleaning, our company has developed a new type stone cleaner.

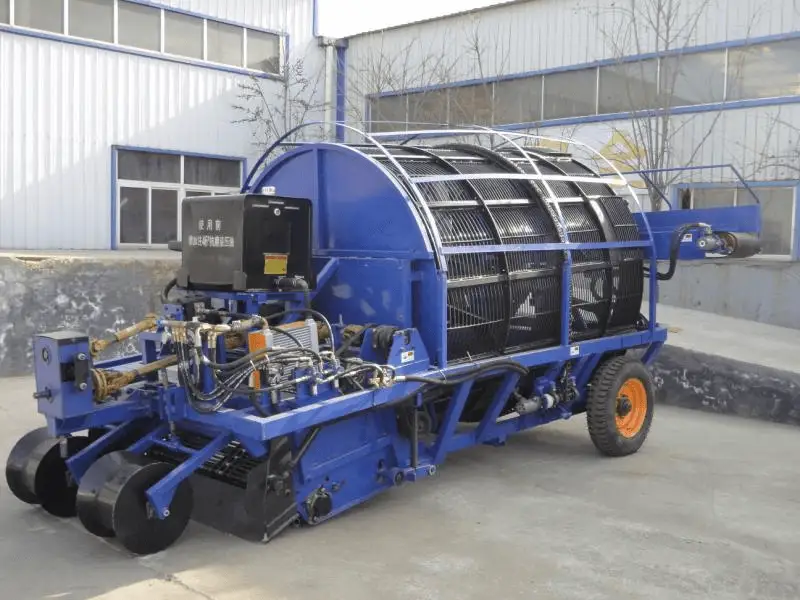

The stone cleaner is motivated by tractor, there is a three-point suspension which has been connected to the stone cleaner. The stone cleaner will be dragged to move forward as the tractor move forward, meanwhile the digging knife will go deep into the soil to collect and transport stones and soil to the front chain, then those stones and soil will be sent to the rear rotating screen to separate the soil and stone. The stones will be transfer into the paralleled tractor bucket by belt conveyor. Stones will be carried away when the bucked is full. Generally, one main stone cleaner is equipped with at least two stone-carrying tractors which could transfer in turn.

The stone cleaner can also be used for cleaning potatoes, sweet potatoes and other bulk crops.

Equipment Display

The company has successfully designed a complete set of production lines for many companies at home and abroad
