Solid Sodium Silicate Water Glass Making Machine
Basic Info.
Solid Sodium Silicate Water Glass Making Machine
Products description
The main raw materials of dry process sodium silicate production are soda ash and quartz sand. The process is batching, firing and dissolving.

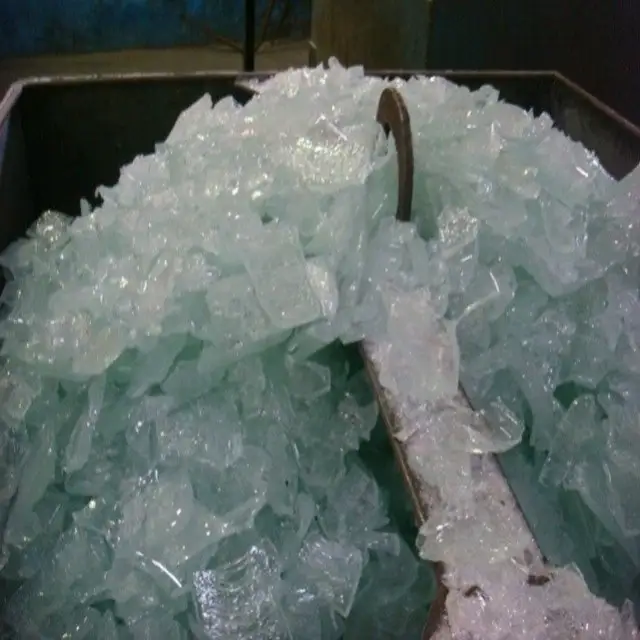

The quartz sand and soda ash are weighed in proportion according to the formula, and are automatically put into the furnace through the conveying device. Chemical reaction occurs at a high temperature of 1350-1450 ºC after the material is put into the furnace. The molten sodium silicate through air cooling or water cooling to form a glassy solid particle sodium silicate. Finished products are sent to the warehouse or stacked or cooled to room temperature for sale. The reflector adopts regenerative preheater. The 1200 ºCflue gas from tail can make air and gas preheat to 1100 ºC and 900 ºC respectively. Exhaust temperature dropped to below 180 ºC to achieve energy conservation and cost reduction.
Technology characteristics
| Product Name | Industrial Turnkey Project Solid Sodium Silicate Plant with Furnace | |
|---|---|---|
| Capacity | 10-200 tons/day | |
| Raw materials | Quartz sand, soda ash | |
| Installation | Engineer Guide | |
| Cooling method | Air cooling, water cooling | |
| Warranty | 1 year | |
| Final products | Sodium silicate, water glass | |
