Industrial Energy Saving Oil Fired Gas Fired Hot Air Furnace for Drying
Basic Info.
Industrial Energy Saving Oil Fired Gas Fired Hot air Furnace for Drying

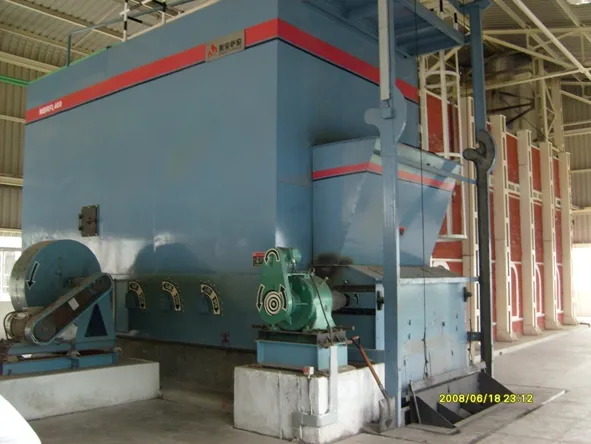

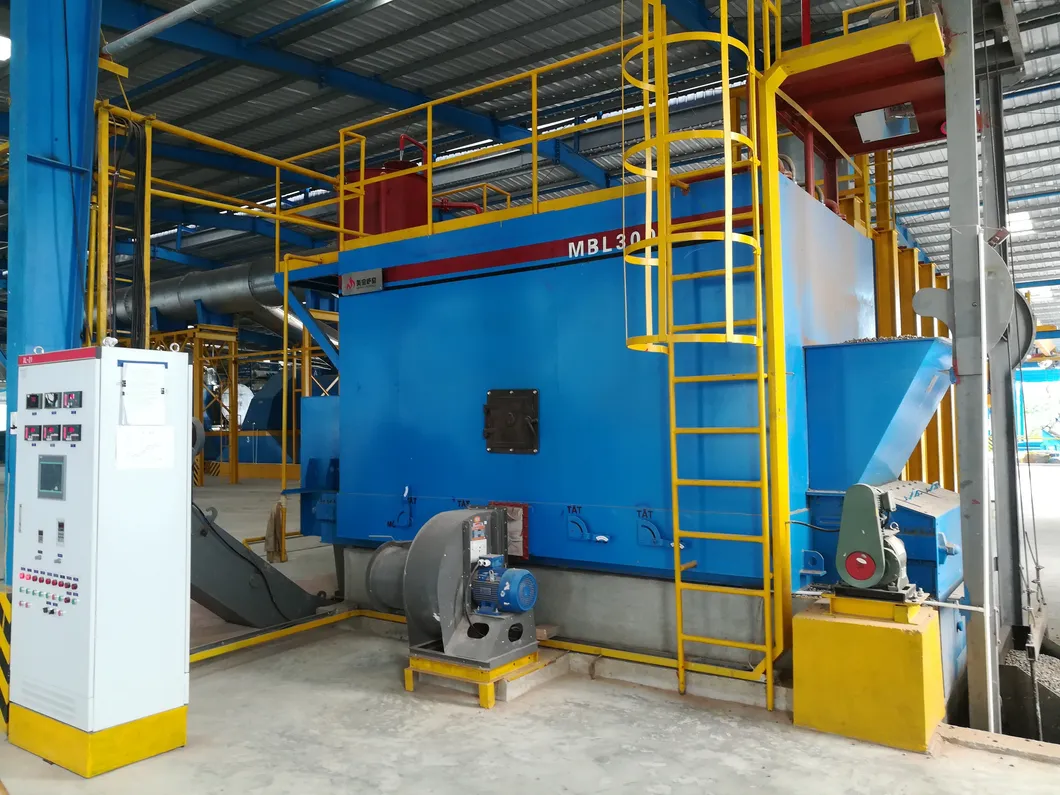

MBZ direct hot air furnace consists of MBL coal burner, high-temperature pueifying room and air mixing room.
Bituminous coal (soft coal) is fed into coal hopper through coal feeder. The coal at a certain height is delivered into burning hearth of coal burner by chain gate. Combustion fan sends air into burner, hot gas produced by burning coal erupts from fire outlet of coal burner and enters in high-temperature purifying room at about 1000deg.C then mixes into a certain amount of fresh air, the mixture at the wanted temperature flows into dryer(such as spray tower, rotary dryer, oven, drying house, flash dryer, fluidized bed etc.)to dry material. Temperature of hot air can be adjustable according to the demand. When hot air is supplied continuously, its temperature fluctuates within ±5 degrees.
Scope of application
Daily-use Chemical,Ceramics,Fertilizers, Feedstuffs, Chemicals, Building materials and others
Technology characteristics
| Product Name | Industrial Energy Saving Oil Fired Gas Fired Hot air Furnace for Drying | |
|---|---|---|
| Capacity | Customized | |
| Raw materials | Wet materials | |
| Application | Chemical, food, ceramics, fetilizers, etc. | |
| Installation | Engineer Guide | |
| Fuel | Coal, oil, gas, biomass | |
| Warranty | 1 year | |
| Feature | Energy saving, low cost | |
Advanages:
(1) Sufficient combustion, there is no black smoke, good operation conditions.
(2) Hot air is very clean, dust content:25-120 mg/Nm3.
(3) Heat efficiency>95%.
(4) Hot air temperature below 900 deg.C can be adjustable easily. When hot air is supplied continuously, its temperature fluctuates within ±5 deg.C.
(5) Operate simply, adjust easily.
(6) High security ,there is no danger of explosion.
(7) Durable, low operating cost, easy maintenance.
(8) All the hot air flows into dryer; there is no increased outlet during production process.
Our company is a "National High-tech Enterprise". It is a member of China Cleaning Industry Association(CCIA) and has the autonomy of import and export business. Our company has a complete product research and development system, quality management system and professional engineering construction team. Our company has passed ISO9001 international quality management system certification. Many of the company's technologies and equipment have applied for national invention and utility model patents.
