Direct Oil/Gas/Coal/Biomass Fired Hot Air Furnace/Generator
Product Information
Providing equipment and technical services to about 1700 companies around the world
Name | Hot Air Generator/ Furnace |
Application | Chemicals, Ceramics, Fertilizers, Feeds, Building Materials, Environmental Protection, etc |
Usage | Dry |
Fuel | Oil, Gas, Coal, Biomass |
Type | Direct, Indirect |
Temperature Adjustment | 60 ~ 1000℃ |
Heat Output | 250,000 Kcal/hr-20million Kcal/hr |
Technology Characteristics
Sufficient combustion, there is no black smoke, good operation conditions.
Hot air is very clean, dust content:25-120 mg/Nm3.
Heat efficiency>95%.
Hot air temperature below 900 deg.C can be adjustable easily. When hot air is supplied continuously, its temperature fluctuates within ±5 deg.C.
Operate simply, adjust easily.
High security ,there is no danger of explosion.
Durable, low operating cost, easy maintenance.
All the hot air flows into dryer; there is no increased outlet during production process.
Technical Characteristics
MBZ direct coal-fired hot air furnace consists of MBL coal burner, high-temperature pueifying room and air mixing room.
Bituminous coal (soft coal) is fed into coal hopper through coal feeder. The coal at a certain height is delivered into burning hearth of coal burner by chain gate.
Combustion fan sends air into burner, hot gas produced by burning coal erupts from fire outlet of coal burner and enters in high-temperature purifying room at about 1000deg.C then mixes into a certain amount of fresh air, the mixture at the wanted temperature flows into dryer(such as spray tower, rotary dryer, oven, drying house, flash dryer, fluidized bed etc.)to dry material. Temperature of hot air can be adjustable according to the demand. When hot air is supplied continuously, its temperature fluctuates within ±5 deg.C.

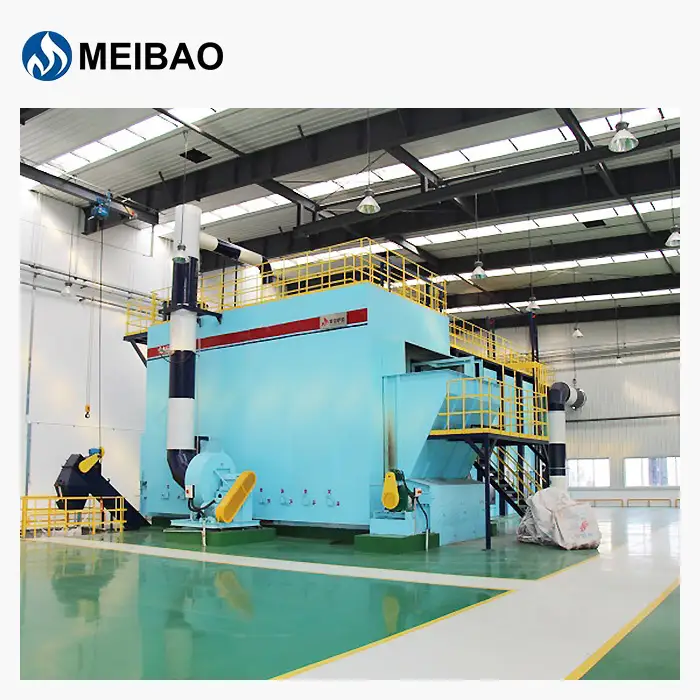

Equipment Display
The company has successfully designed a complete set of production lines for many companies at home and abroad
