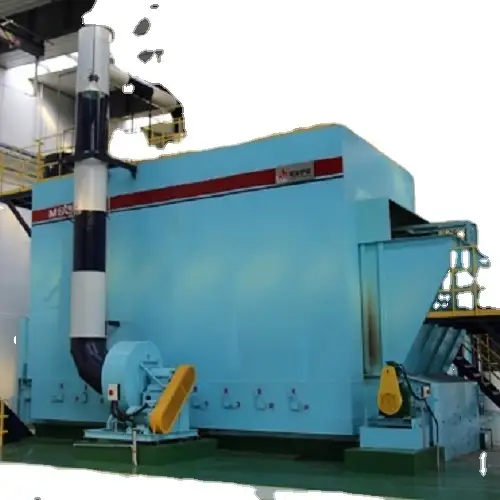

Industrial direct coal fired hot air dryer/ Gas fired hot air furnace/ Biomass fired hot blast furnace for food,chemical
MBZ direct coal-fired hot air furnace consists of MBL coal burner, high-temperature pueifying room and air mixing room.
Bituminous coal (soft coal) is fed into coal hopper through coal feeder. The coal at a certain height is delivered into burning hearth of coal burner by chain gate. Combustion fan sends air into burner, hot gas produced by burning coal erupts from fire outlet of coal burner and enters in high-temperature purifying room at about 1000deg.C then mixes into a certain amount of fresh air, the mixture at the wanted temperature flows into dryer(such as spray tower, rotary dryer, oven, drying house, flash dryer, fluidized bed etc.)to dry material. Temperature of hot air can be adjustable according to the demand. When hot air is supplied continuously, its temperature fluctuates within ±5 deg.C.
Advanages:
(1) Sufficient combustion, there is no black smoke, good operation conditions.
(2) Hot air is very clean, dust content:25-120 mg/Nm3.
(3) Heat efficiency>95%.
(4) Hot air temperature below 900 deg.C can be adjustable easily. When hot air is supplied continuously, its temperature fluctuates within ±5 deg.C.
(5) Operate simply, adjust easily.
(6) High security ,there is no danger of explosion.
(7) Durable, low operating cost, easy maintenance.
(8) All the hot air flows into dryer; there is no increased outlet during production process.
Scope of application:
Daily-use Chemical,Ceramics,Fertilizers, Feedstuffs, Chemicals, Building materials and others
MBZ direct coal-fired hot air furnace consists of MBL coal burner, high-temperature pueifying room and air mixing room.
Bituminous coal (soft coal) is fed into coal hopper through coal feeder. The coal at a certain height is delivered into burning hearth of coal burner by chain gate. Combustion fan sends air into burner, hot gas produced by burning coal erupts from fire outlet of coal burner and enters in high-temperature purifying room at about 1000deg.C then mixes into a certain amount of fresh air, the mixture at the wanted temperature flows into dryer(such as spray tower, rotary dryer, oven, drying house, flash dryer, fluidized bed etc.)to dry material. Temperature of hot air can be adjustable according to the demand. When hot air is supplied continuously, its temperature fluctuates within ±5 deg.C.
Product attributes
| Product Name: | Hot Air Furnace/ Hot Blast Generator | Capacity: | As Customer Requirements |
|---|---|---|---|
| Fuel: | Oil, Gas, Coal, Biomass | Usage: | Daily Chemical, Food, Medicine,building Materials,etc |
| Temperature Adjust: | 100℃-1000℃ | Heating Source: | Hot Air |
| Raw Material: | Liquid Form Material | Installation: | Engineer Guide |
Our company is a "National High-tech Enterprise". It is a member of China washing Association technical equipment Specialized Committee and has the autonomy of import and export business. The company has a complete product research and development system,quality management system and professional engineering construction team. The company has passed ISO9001 international quality management system certification. Many of the company's technologies and equipment have applied for national invention and utility model patents.
Contact information
Contact person: Helen Zhong
Tel & Wechat&Whatsapp :0086-13818105145
Zhejiang Meibao Industrial Technology CO.,Ltd.
Address: Floor 14th, ZMI Plaza, Kaixuan Road, Hangzhou , China
Why choose us
a) Professional team to design the perfect products according to your specific demands.
b) Reliable after-sell service and technical supporting.
c) Precise engineering drawing available and private scheme only for you with the most economic and efficient purpose.
Our Clients:
Unilever
P&G
PT. WINGS SURYA
Nice Group
Nafine Group
Liby Group
German Henkel Co. Ltd.
......
