High spray drying tower detergent powder making machine / Automatic laundry detergent plant

Product Description

We provide process design, equipment manufacturing, installation, commissioning and operation training for the washing powder production line of 5,000 to 250,000 tons/year.

Process configurations from simple manual operations to centralized automation of central computers can be designed. We also undertake technical consulting and old line engineering services. Our company has successfully provided technology and services to approximately 160 washing powder plants worldwide. Including Unilever, P & G, Indonesia Wings, Myanmar Rose Detergent Factory, Yemen Red Sea, Nice Group, Liby Group, Topseller Chemical, Guangdong Lonkey, etc.

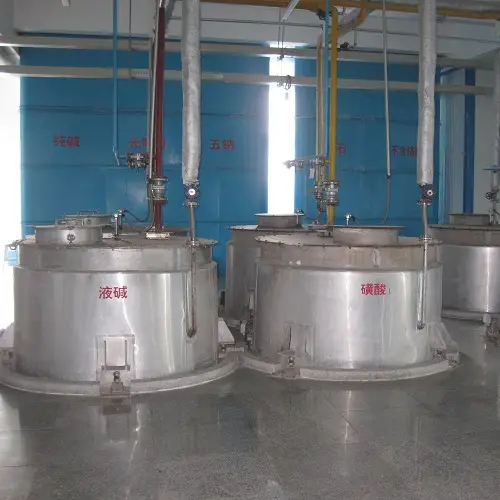

Adopt the process of high spray tower. Apparent specific gravity of product is 0.25~0.50g/cm3.All kinds of powder materials, liquid materials are weighed respectively according to the formula, , sent to slurry preparator to make slurry, after hydrated aging, crushing and filtering by aging system, sent to the top of spray tower by high pressure pump. Form mist particles through spray nozzles, dried by hot air generated by hot air furnace. At the bottom of the tower, hollow particles of detergent powder are formed. Then by air lifting, aging, base powder is made. After sieving, other materials (such as enzyme, color particles, essence, non-ionic, etc.) shall be added into base powder, and then put together into the post-blending mixer. After mixing and granulating, final detergent power in medium & top grade is made, and eventually packing.

Technology Characteristics

a. The waste gas of whole production system reaches the emission standard, no sewage discharge.

b. After drying, tail-gas is dealt by primary cyclone dust removal and secondary water dust removal. Save energy and reduce consumption, emissions reach the normal standard.

c. Fine powder collecting from dedusting process is completely back to tower, water can be recycled and the precipitated slurry after collecting can be used for proportioning.

d. Workshop environment is provided with perfect dedusting system, ensure the workshop environment clean.

e. Factory and workshop have reasonable logistics, rational configuration, save the operating expense.

f. Control system can adopt simple manual operation or central computer integrated automatic control.

Product attributes

Our company is a "National High-tech Enterprise". It is a member of China washing Association technical equipment Specialized Committee and has the autonomy of import and export business. The company has a complete product research and development system,quality management system and professional engineering construction team. The company has passed ISO9001 international quality management system certification.  Many of the company's technologies and equipment have applied for national invention and utility model patents.

       Contact :  Helen  Zhong

       Tel & Wechat&Whatsapp :0086-13818105145

       Zhejiang Meibao Industrial Technology CO.,Ltd.

      Address: Floor 14(151)th,Wuchan Guoji Plaza,Kaixuan Road,Hangzhou ,China

Why choose us

a) Professional team to design the perfect products according to your specific demands.

b) Reliable after-sell service and technical supporting.

c) Precise engineering drawing available and private scheme only for you with the most economic and efficient purpose.

Our Clients:

Sino-Arab Chemical Fertilizer Co., Ltd.,

Unilever Ltd.,

Indonesia PT PACINESIA CHEMICAL INDUSTRY

PT. WINGS SURYA

Nice Group

Nafine Group

Liby Group

German Henkel Co. Ltd,etc.
